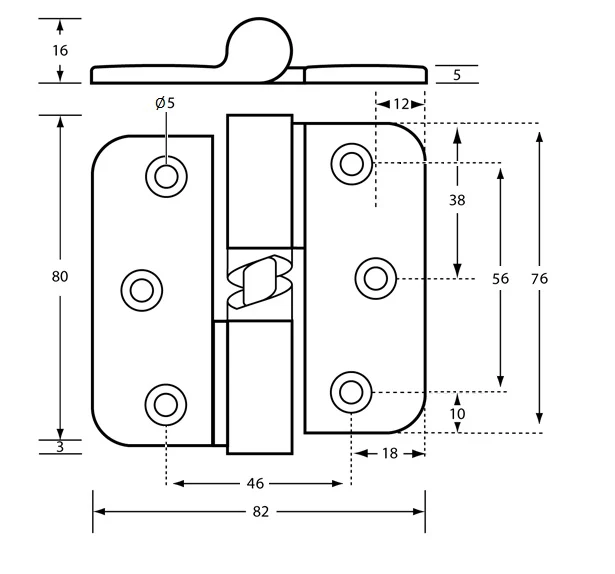

106C Gravity Hinge - Antimicrobial
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts, ABS Snap On Covers |
| Finish | Antimicrobial |
| Mounting | Concealed Screw Fix or Bolt Through |
| Minimum Hinge Clearance For Lift Off Hinges | 30mm |
| Specify |
106C_LHHC_ANMB: Left Hand, Hold Closed. Assists door to move towards Hold Closed position 106C_LHHO_ANMB: Left Hand, Hold Open. Assists door to move towards Hold Open position 106C_RHHC_ANMB: Right Hand, Hold Closed. Assists door to move towards Hold Closed position 106C_RHHO_ANMB: Right Hand, Hold Open. Assists door to move towards Hold Open position |
| Features | Gravity assisted door opening with lift off capability. |
|
Load Rating
|
15Kg per hinge
For optimum performance -
2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing
|
|
For optimum performance - Note: 3 Hinges per door is recommended to prevent door bowing |
|
| Note |
For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate) All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering. |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
