109 Spring Hinge - Visible Fix

109 Spring Hinge - Visible Fix

Specification

Material Brass
Finish SCP: Satin Chrome Plate
BCP: Bright Chrome Plate
Specify 109_HC_SCP: Hold Closed, Satin Chrome Plate
109_HO_SCP: Hold Open, Satin Chrome Plate
109_HC_BCP: Hold Closed, Bright Chrome Plate
109_HO_BCP: Hold Open, Bright Chrome Plate
Mounting Screw Fix or Bolt Through
Features Spring-assisted hold open/hold closed
Indicative Load Rating  20 - 25Kg per hinge



For optimum performance -
2 hinges per door up to 40Kgs
For doors over 40Kg allow for 20Kg per hinge

Note: 3 Hinges per door is recommended to prevent door bowing
  Note: All Hinges Are Available With Or Without Fixings.  Please Nominate Your Requirements At The Time Of Ordering.
$48.73
109 Spring Hinge - Visible Fix—
$48.73

More Images

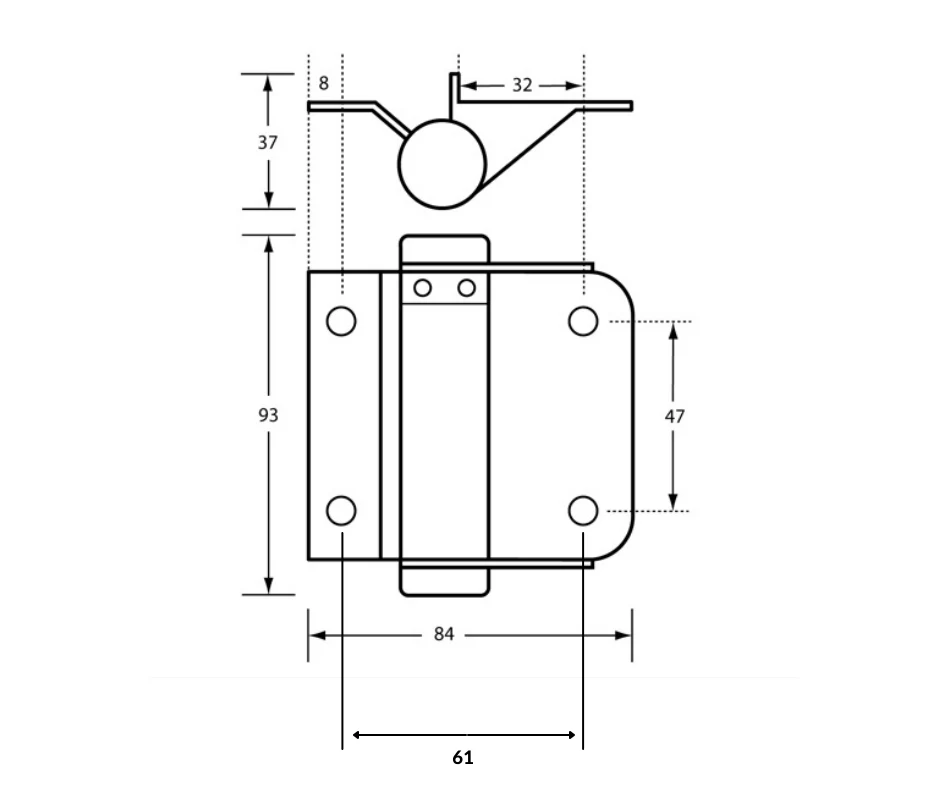

109 Spring Hinge - Visible Fix - Image 2

109 Spring Hinge - Visible Fix

Specification

Material Brass
Finish SCP: Satin Chrome Plate
BCP: Bright Chrome Plate
Specify 109_HC_SCP: Hold Closed, Satin Chrome Plate
109_HO_SCP: Hold Open, Satin Chrome Plate
109_HC_BCP: Hold Closed, Bright Chrome Plate
109_HO_BCP: Hold Open, Bright Chrome Plate
Mounting Screw Fix or Bolt Through
Features Spring-assisted hold open/hold closed
Indicative Load Rating  20 - 25Kg per hinge



For optimum performance -
2 hinges per door up to 40Kgs
For doors over 40Kg allow for 20Kg per hinge

Note: 3 Hinges per door is recommended to prevent door bowing
  Note: All Hinges Are Available With Or Without Fixings.  Please Nominate Your Requirements At The Time Of Ordering.
