30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH
HomeStore

30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH

30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH

Specification

Material #304 Stainless Steel - 32mmØ
Specify MLR113MOD
Mounting Concealed Fix - 78mmØ Mount
Rail Standoff 60mm
Mounting Point Horizontal @ 170mm Off Wall including Standoff
Finish Satin Stainless Steel
Note

 * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.

$130.81
30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH
$130.81

More Images

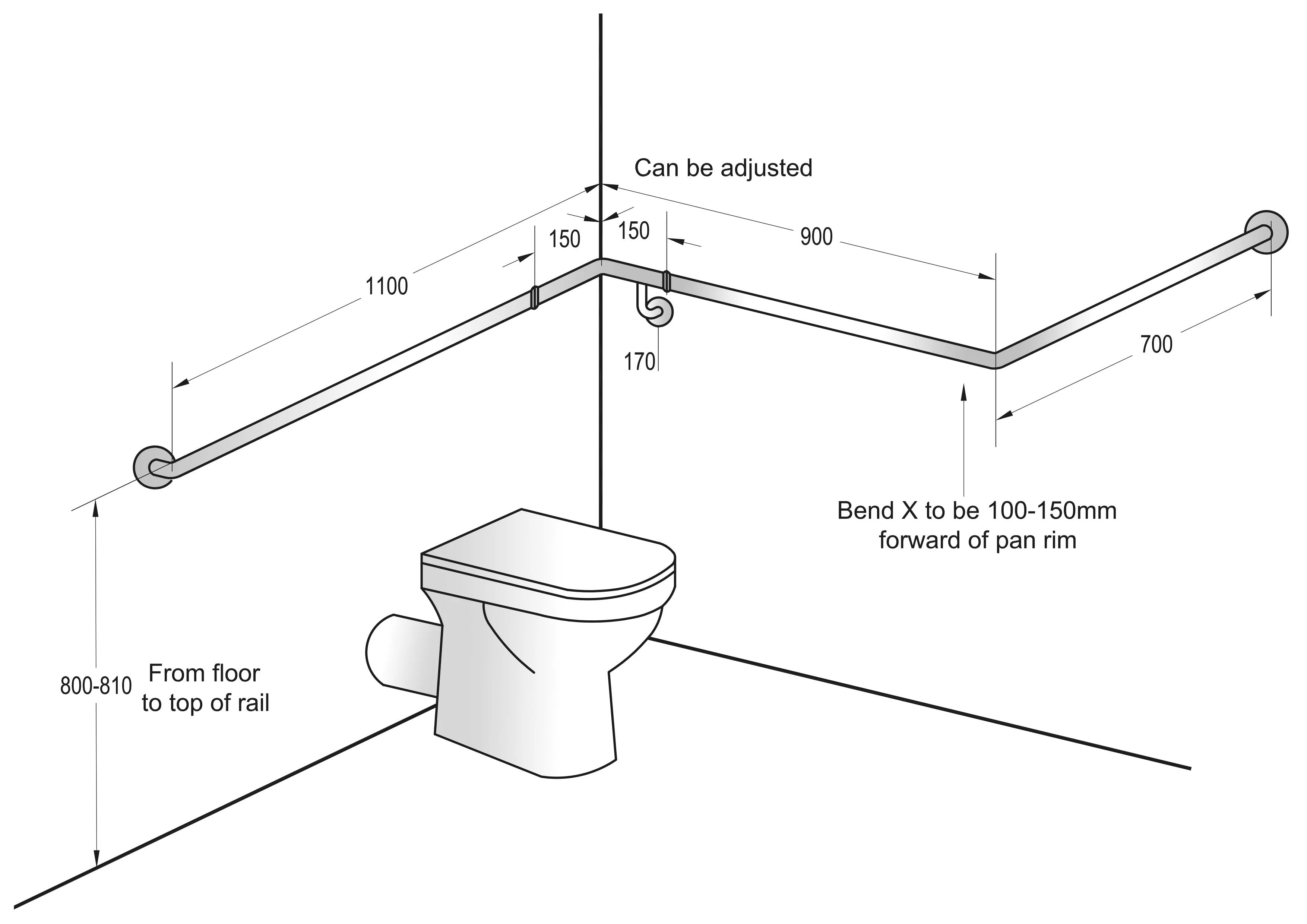

30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH - Image 2

30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm LH

Specification

Material #304 Stainless Steel - 32mmØ
Specify MLR113MOD
Mounting Concealed Fix - 78mmØ Mount
Rail Standoff 60mm
Mounting Point Horizontal @ 170mm Off Wall including Standoff
Finish Satin Stainless Steel
Note

 * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.

Product Information

Shipping & Returns

Description

Specification

Material #304 Stainless Steel - 32mmØ
Specify MLR113MOD
Mounting Concealed Fix - 78mmØ Mount
Rail Standoff 60mm
Mounting Point Horizontal @ 170mm Off Wall including Standoff
Finish Satin Stainless Steel
Note

 * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.
