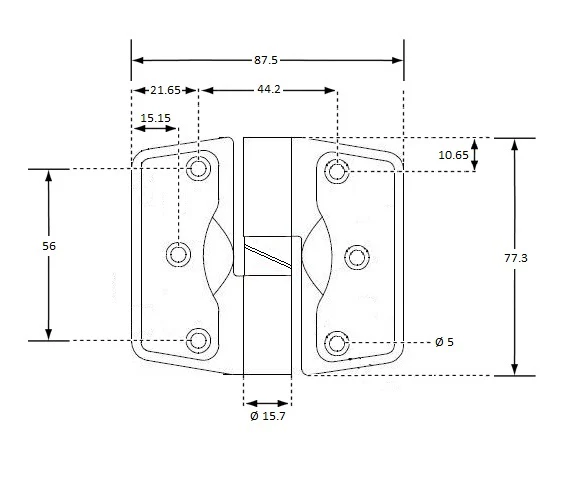

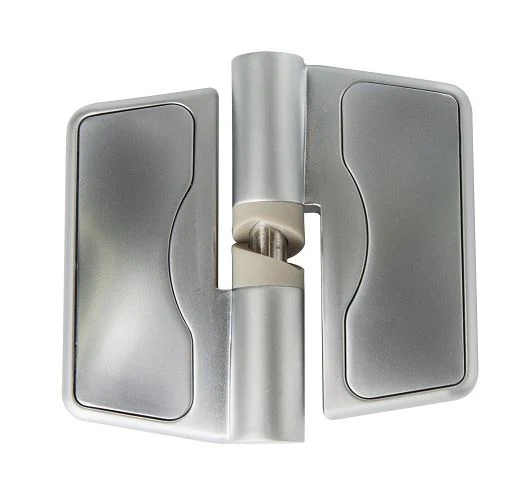

301 Gravity Hinge - Concealed Fix
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts ABS Snap-On Covers |
| Finish | Satin Chrome Plate |
| Mounting | Concealed Screw Fix or Bolt Through |
| Specify |
301_LHHC_SCP: Left Hand, Hold Closed. Assists door to move towards Hold Closed position. 301_LHHO_SCP: Left Hand, Hold Open. Assists door to move towards Hold Open position. 301_RHHC_SCP: Right Hand, Hold Closed. Assists door to move towards Hold Closed position. 301_RHHO_SCP: Right Hand, Hold Open. Assists door to move towards Hold Open position. |
| Features | Gravity assisted door opening/door closing with lift off capability. |
| Load Rating |
15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing |
| Note |
For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate) All hinges are available with or without fixings. Please nominate your requirements at the time of ordering. |
| Disclaimer |
Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. |
Original: $15.96
-65%$15.96
$5.59More Images
301 Gravity Hinge - Concealed Fix
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts ABS Snap-On Covers |
| Finish | Satin Chrome Plate |
| Mounting | Concealed Screw Fix or Bolt Through |
| Specify |
301_LHHC_SCP: Left Hand, Hold Closed. Assists door to move towards Hold Closed position. 301_LHHO_SCP: Left Hand, Hold Open. Assists door to move towards Hold Open position. 301_RHHC_SCP: Right Hand, Hold Closed. Assists door to move towards Hold Closed position. 301_RHHO_SCP: Right Hand, Hold Open. Assists door to move towards Hold Open position. |
| Features | Gravity assisted door opening/door closing with lift off capability. |
| Load Rating |
15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing |
| Note |
For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate) All hinges are available with or without fixings. Please nominate your requirements at the time of ordering. |
| Disclaimer |
Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. |
