750mm Straight Grab Rail
Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| Dimensions | 750mm C to C |

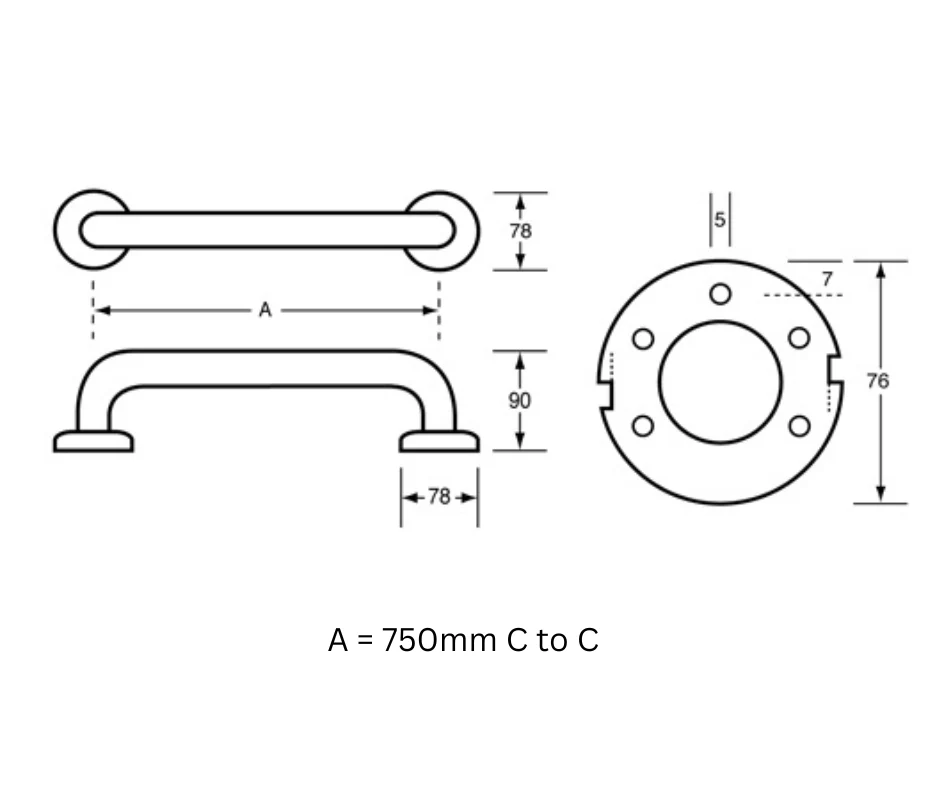

| Please Note: A Indicated On The Line Drawings Refers To The Length, Please See Below And Specify Accordingly | |
|
Also Available
|
ML327 - A= 300mm C to C
ML328 - A= 350mm C to C ML329 - A= 400 mm C to C ML330 - A= 450mm C to C ML331 - A= 600mm C to C ML338 - A= 800mm C to C ML333 - A= 900mm C to C ML334 - A= 1000mm C to C ML335 - A= 1200mm C to C ML336 - A= 1500mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Original: $31.99
-65%$31.99
$11.20More Images
750mm Straight Grab Rail
Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| Dimensions | 750mm C to C |
| Please Note: A Indicated On The Line Drawings Refers To The Length, Please See Below And Specify Accordingly | |
|
Also Available
|
ML327 - A= 300mm C to C
ML328 - A= 350mm C to C ML329 - A= 400 mm C to C ML330 - A= 450mm C to C ML331 - A= 600mm C to C ML338 - A= 800mm C to C ML333 - A= 900mm C to C ML334 - A= 1000mm C to C ML335 - A= 1200mm C to C ML336 - A= 1500mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
