AVG 15mm Pressure Reducing Valve — Adjustable 250–650kPa, DR Brass, Watermark, Factory Set 500kPa | PRV15F-LF
AVG 15mm Pressure Reducing Valve — Adjustable 250–650kPa, DR Brass, Watermark, Factory Set 500kPa | PRV15F-LF

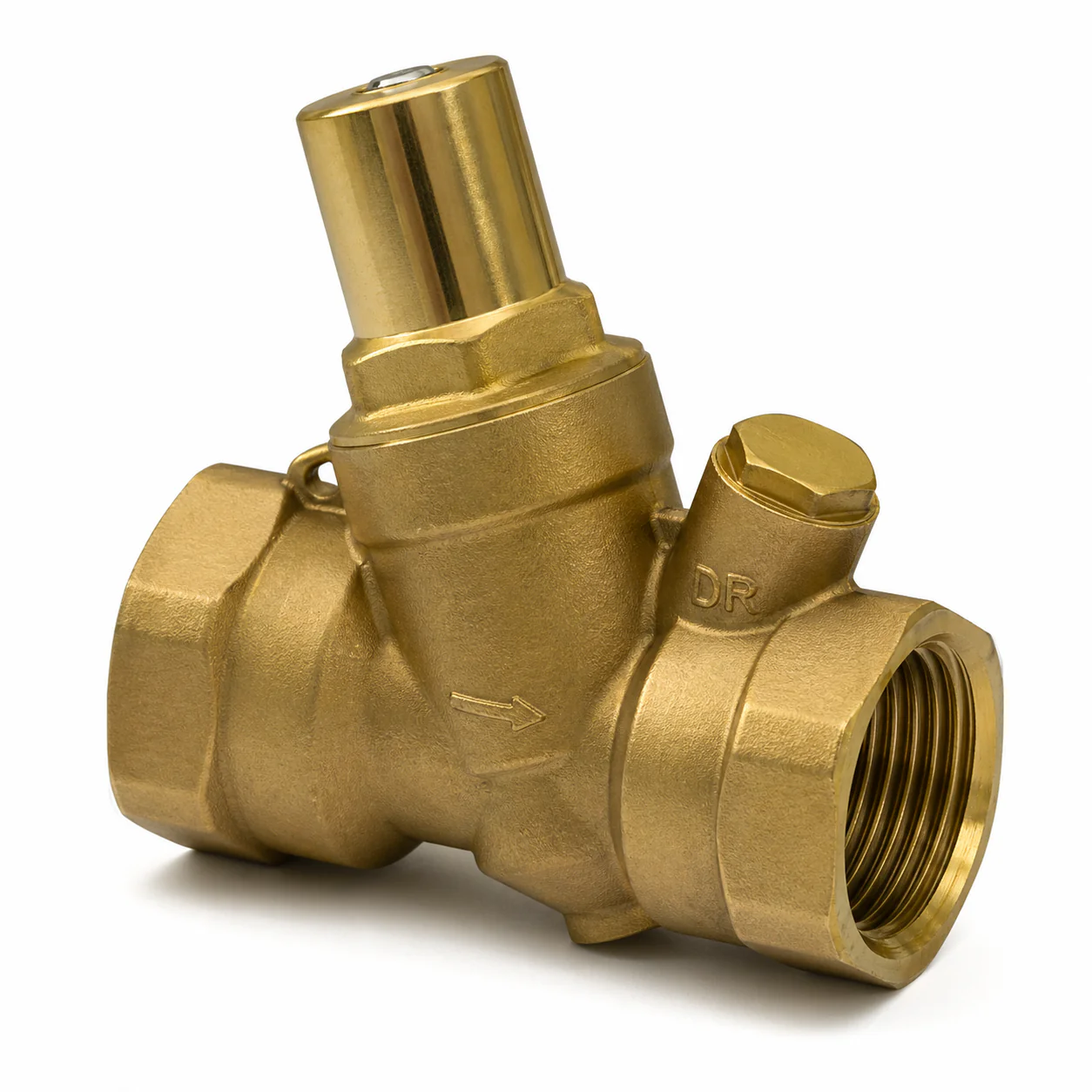

The AVG PRV15F is a 15mm inline pressure reducing valve from the Australian Valve Group — a Watts brand — built for residential and light commercial plumbing systems across Australia. It reduces and stabilises incoming mains pressure to a safe working level, protecting hot water systems, tapware, pipe joints, tap washers, and washing machine hoses from the cumulative damage that excess pressure causes.
Factory set at 500kPa in line with AS/NZS 3500.1 requirements, and fully adjustable between 250–650kPa using the top screw — clockwise to increase, anticlockwise to reduce. Three gauge ports are standard on the body for upstream and downstream pressure monitoring. A tagging eye is cast into the body for easy identification and mechanical service tagging.
The membrane design with stainless steel seat provides more reliable long-term pressure control than piston-style pressure limiting valves, which are prone to clogging. An internal stainless steel mesh strainer protects the valve from debris. Can be installed horizontally or vertically, and is suitable for below-ground installation in an approved protective box.
Compatible with most existing valve threads and fitments — a direct replacement for Reliance, Tomson, AW, Nefa, Reflex, APO, and similar brands with no pipe modifications required.
Features:
- 15mm inline FxF connection
- Adjustable pressure range: 250–650kPa
- Factory set at 500kPa (AS/NZS 3500.1 compliant)
- Triple gauge test points — upstream and downstream monitoring
- No breather hole
- Stainless steel 316 seat
- Internal stainless steel mesh strainer
- DR brass body, control spindle, and components
- EPDM 70 seals, stainless steel spring
- Compact design — can be installed horizontally or vertically
- Tagging eye cast into body for mechanical service identification
- Watermark certified — AS 1357.2, Lic 2639
- Lead free construction
Performance Specifications:
- Pressure setting range: 250–650kPa
- Factory setting: 500kPa
- Max. inlet pressure: 1600kPa
- Max. working temperature: 80°C
- Flow rate @ 700kPa dynamic, 500kPa set pressure: 60 L/min
- Flow rate @ 700kPa dynamic, 250kPa set pressure: 22 L/min
Dimensions: 68mm (A) x 22mm (B) x 78mm (C) x 34mm (D)
SKU: PRV15F-LF | Brand: AVG (Australian Valve Group — A Watts Brand)
Original: $31.87
-65%$31.87
$11.15AVG 15mm Pressure Reducing Valve — Adjustable 250–650kPa, DR Brass, Watermark, Factory Set 500kPa | PRV15F-LF
The AVG PRV15F is a 15mm inline pressure reducing valve from the Australian Valve Group — a Watts brand — built for residential and light commercial plumbing systems across Australia. It reduces and stabilises incoming mains pressure to a safe working level, protecting hot water systems, tapware, pipe joints, tap washers, and washing machine hoses from the cumulative damage that excess pressure causes.
Factory set at 500kPa in line with AS/NZS 3500.1 requirements, and fully adjustable between 250–650kPa using the top screw — clockwise to increase, anticlockwise to reduce. Three gauge ports are standard on the body for upstream and downstream pressure monitoring. A tagging eye is cast into the body for easy identification and mechanical service tagging.
The membrane design with stainless steel seat provides more reliable long-term pressure control than piston-style pressure limiting valves, which are prone to clogging. An internal stainless steel mesh strainer protects the valve from debris. Can be installed horizontally or vertically, and is suitable for below-ground installation in an approved protective box.
Compatible with most existing valve threads and fitments — a direct replacement for Reliance, Tomson, AW, Nefa, Reflex, APO, and similar brands with no pipe modifications required.
Features:
- 15mm inline FxF connection
- Adjustable pressure range: 250–650kPa
- Factory set at 500kPa (AS/NZS 3500.1 compliant)
- Triple gauge test points — upstream and downstream monitoring
- No breather hole
- Stainless steel 316 seat
- Internal stainless steel mesh strainer
- DR brass body, control spindle, and components
- EPDM 70 seals, stainless steel spring
- Compact design — can be installed horizontally or vertically
- Tagging eye cast into body for mechanical service identification
- Watermark certified — AS 1357.2, Lic 2639
- Lead free construction
Performance Specifications:
- Pressure setting range: 250–650kPa
- Factory setting: 500kPa
- Max. inlet pressure: 1600kPa
- Max. working temperature: 80°C
- Flow rate @ 700kPa dynamic, 500kPa set pressure: 60 L/min
- Flow rate @ 700kPa dynamic, 250kPa set pressure: 22 L/min
Dimensions: 68mm (A) x 22mm (B) x 78mm (C) x 34mm (D)
SKU: PRV15F-LF | Brand: AVG (Australian Valve Group — A Watts Brand)
