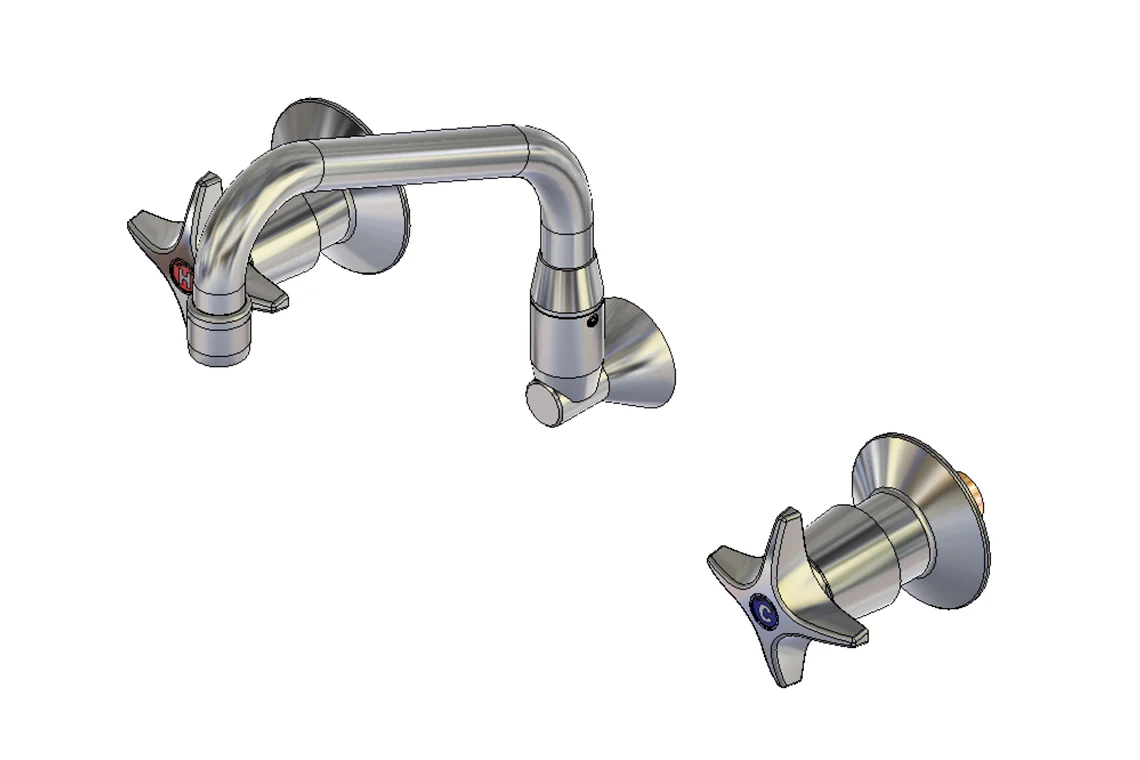

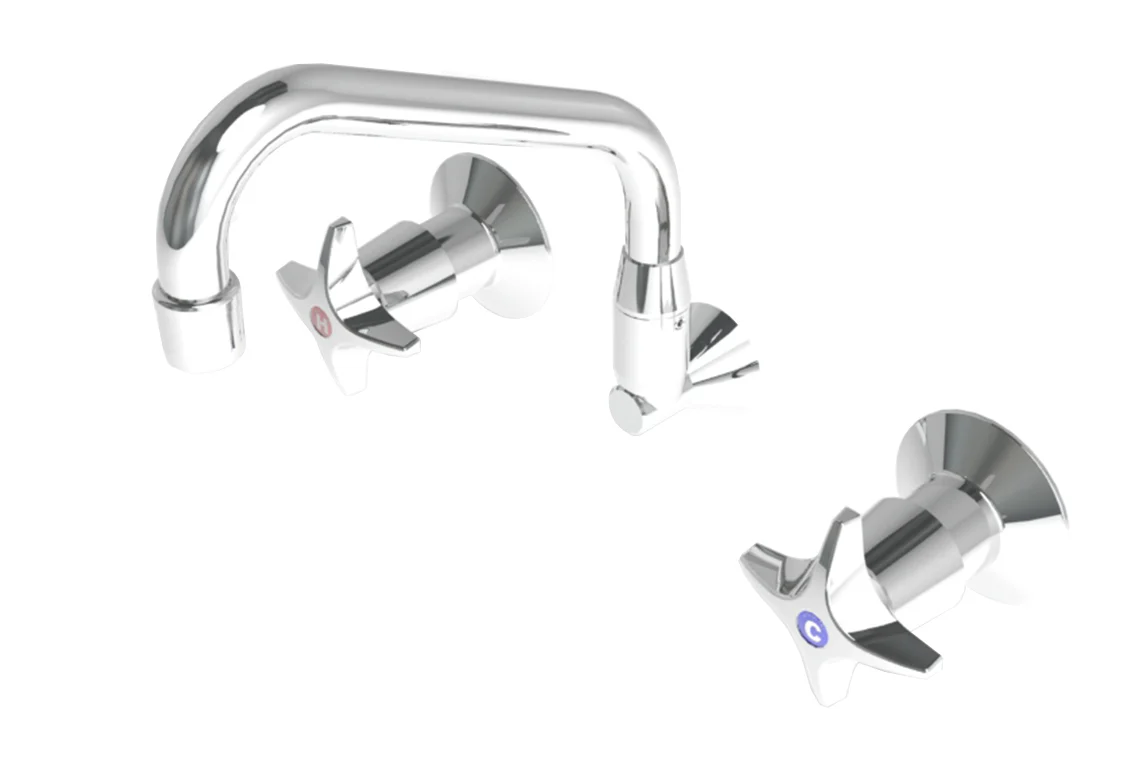

Concealed Spindle Recess Set with SP110 Swivel Aerated Spout
Dimensional Drawing - Document
Concealed spindle tapware series is robust and vandal resistant. The ergonomically designed handle features a dress skirt which conceals the anti-vandal handle fixing and spindle. Ideal for commercial, institutional and public amenity applications.
- High quality construction from dezincification resistant (DR) brass with durable chrome plated finish
- Vandal-resistant internal locking ring secures the handle and requires the supplied special key to release
- Serviceable with all wearing components replaceable, thus providing an even longer life
- Supplied complete with handles, buttons and outlet
- Heavy duty bright chrome
- WELS Options include: 3 and 5 Star Rating
- WaterMark: AS/NZS 3718 WMKA 1583
PRESSURE
| Ceramic Disc Maximum Static Pressure | 800kPa |
| Ceramic Disc Minimum-Maximum Working Pressure (AS/NZS 3500) | 50-500kPa |
TEMPERATURE
| Ceramic Disc Maximum Working Temperature | 85C |
JUMPER VALVE
| Jumper Valve Maximum Static Pressure | 1200kPa |
| Jumper Valve Maximum Working Temperature | 95C |
| Jumper Valve Minimum-Maximum Working Pressure (AS/NZS 3500)* | 30-500kPa |
