HotKit 500kPa Hot Water Installation Kit with Insulation - Complete Ready-to-Install Valve Set – Lead-Free, WaterMark Approved
HotKit 500kPa Hot Water Installation Kit with Insulation - Complete Ready-to-Install Valve Set – Lead-Free, WaterMark Approved
pgrade every hot water installation with the HotKit™ 500kPa Insulated Installation Kit, the all-in-one, pre-configured valve assembly designed for speed, compliance, and reliability.
Built for both horizontal and vertical installations, the HotKit™ includes fully WaterMark-approved, lead-free brass components and dual insulation jackets that meet AS/NZS 3500.4 standards — ensuring every job is efficient, professional, and compliant.
✅ Features
-
500kPa Pressure Limiting Valve (Lead-Free) – maintains consistent water pressure and protects hot water systems
-
Dual Isolation & Non-Return Function – integrated ball valve with check valve for serviceability and safety
-
Tempering Valve Included – pre-fitted and certified to AS4032.2 for temperature control compliance
-
Insulated Jackets Supplied – compliant with AS3500.4 for energy efficiency and system protection
-
Horizontal or Vertical Installation – versatile layout for all domestic plumbing setups
-
Lead-Free & WaterMark Certified – tested to AS4032.2, AS1357, AS3688, and WMTS 012 for Australian conditions
-
Trade-Tough Build – high-quality brass and copper fittings for long-term durability
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HWKIT-02 |
| Pressure Rating | 500kPa |
| Temperature Range | 1°C – 80°C |
| Max Operating Pressure | 1400kPa |
| Material | Lead-Free Brass & Copper |
| Insulation | PU Jacket (Included) |
| Installation Orientation | Horizontal or Vertical |
| Copper Tubes | Not Included |

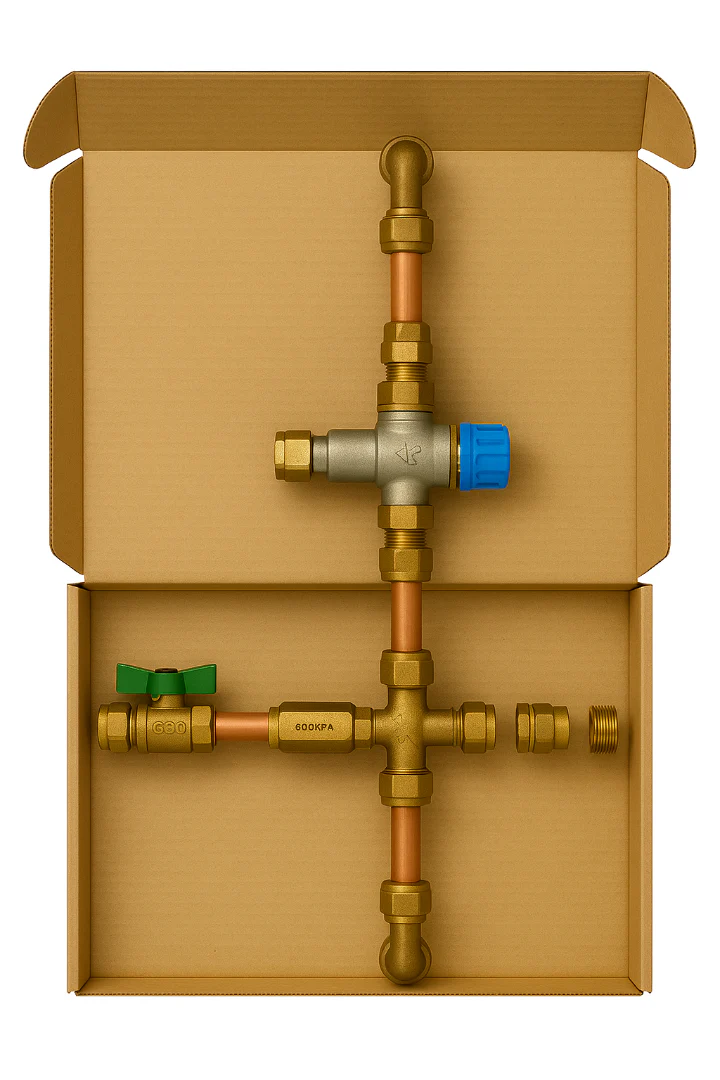

📦 Kit Components
-
Tee Swivel Nut – 15FI x 15FI x 15C x 15C (Lead Free)
-
2 × Copper Compression Elbows – Reducing Extended 20MI x 15C (Lead Free)
-
PU Cover to suit DFC
-
PU Cover to suit PLV
-
500kPa Pressure Limiting Valve – 15mm C x C (Lead Free)
-
Tempering Valve – 15mm (Lead Free)
-
Dual Isolation Non-Return Ball Valve with Check Valve – 15mm (Lead Free)
-
Hexagonal Plug – 15mm BSPP (Lead Free)
-
2 × Copper Compression Unions – 15MI x 15C (Lead Free)
💧 Why Plumbers Choose HotKit™
Save installation time, maintain compliance, and deliver a clean, professional finish on every hot water job.
The HotKit™ 500kPa Installation Kit combines all the critical components into one convenient, pre-tested set — giving you reliability, performance, and value that lasts.
