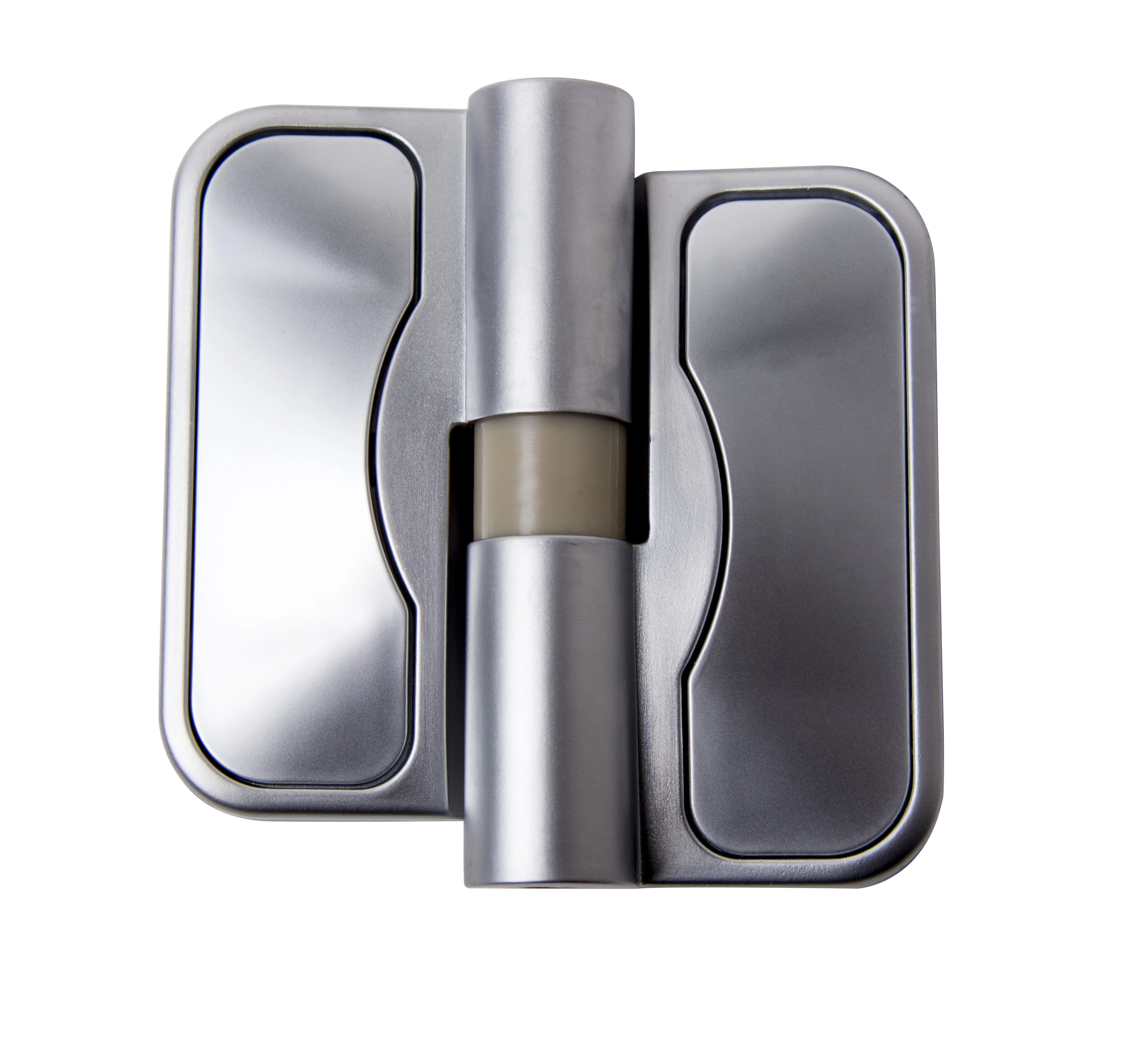

Moda Gravity Hinge - Satin Chrome Plate
Specification
| Material | Diecast Zinc, Alloy ZP3 Brass Shaft Nylon Inserts ABS Snap On Covers |
| Finish | Satin Chrome Plate |
| Specify |
MODA_LHGRAVITY_SCP: Satin Chrome Plate |
| Mounting | Concealed Screw Fix or Bolt Through |
| Features | The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function.
The nylons are set so the door can move past 90° whilst still functioning correctly. The nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing. Interchangeable hinge covers including Moda Spring Hinge. The fixing holes correlate with the bolt-through faceplates making installation a breeze. Reversible Hold Open / Hold Closed Lift off capability |
| Load Rating | 15Kg per hinge |
|
For optimum performance - Note: 3 Hinges per door is recommended to prevent door bowing |
|
| Note | For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate only) |
