Pull Down Grab Rail
Specification
| Material | #304 Stainless Steel |
| Tubing: | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace: |
2.5mm Formed #304 Stainless Steel |
| Finish | Satin Stainless Steel |

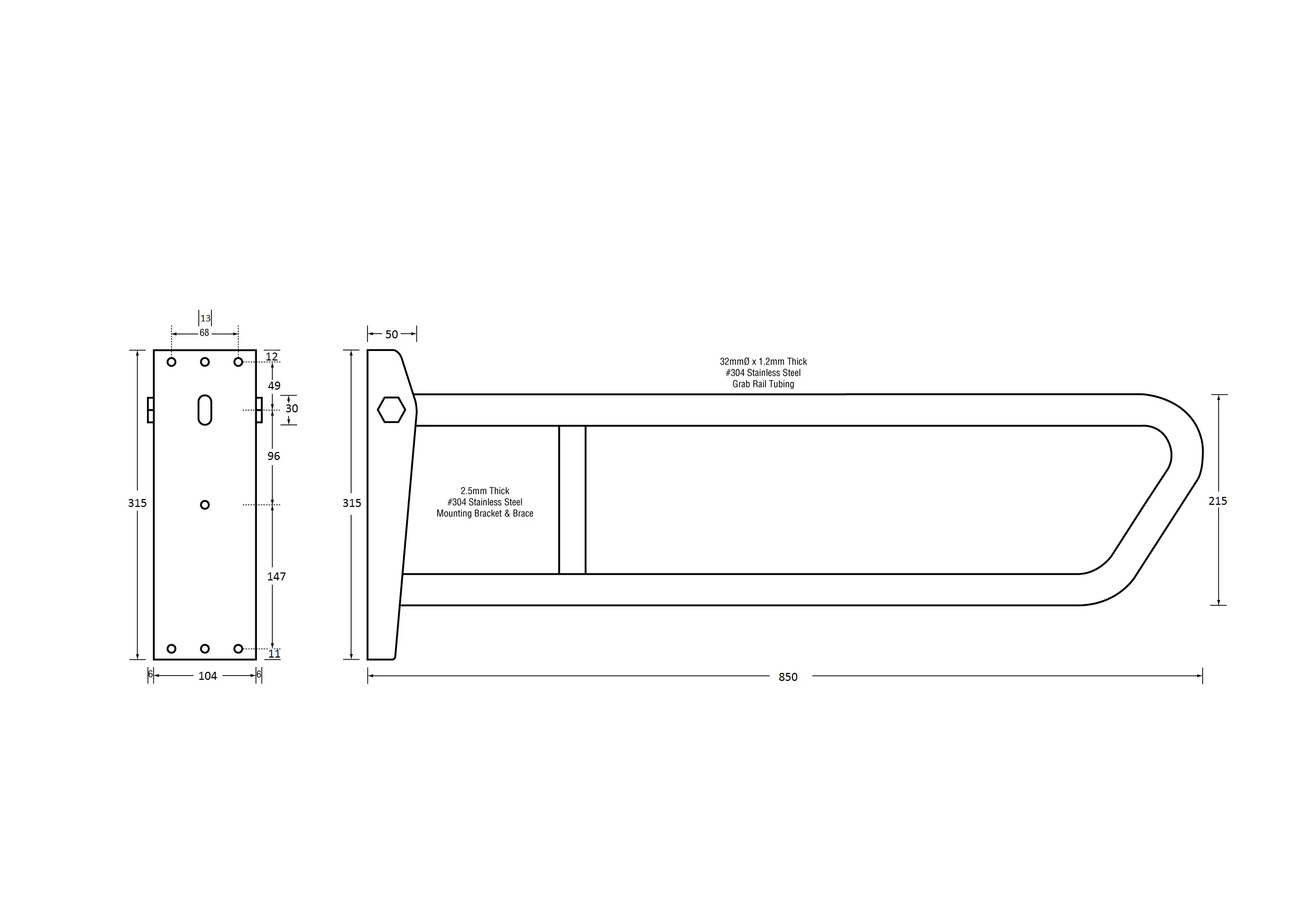

| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail: | 215mmH from outer edge to edge |
| Mounting Bracket: | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes: | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Note |
*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. *Unit stores in upright position |
Original: $150.90
-65%$150.90
$52.81More Images
Pull Down Grab Rail
Specification
| Material | #304 Stainless Steel |
| Tubing: | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace: |
2.5mm Formed #304 Stainless Steel |
| Finish | Satin Stainless Steel |
| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail: | 215mmH from outer edge to edge |
| Mounting Bracket: | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes: | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Note |
*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. *Unit stores in upright position |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification
| Material | #304 Stainless Steel |
| Tubing: | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace: |
2.5mm Formed #304 Stainless Steel |
| Finish | Satin Stainless Steel |
| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail: | 215mmH from outer edge to edge |
| Mounting Bracket: | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes: | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Note |
*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. *Unit stores in upright position |
