Pull Down Grab Rail with Toilet Roll Holder
Specification
| Material | #304 Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace |
2.5mm Formed #304 Stainless Steel |
| Toilet Roll Holder | 12.5mmØ Stainless Steel Bar |
| Finish | Satin Stainless Steel |

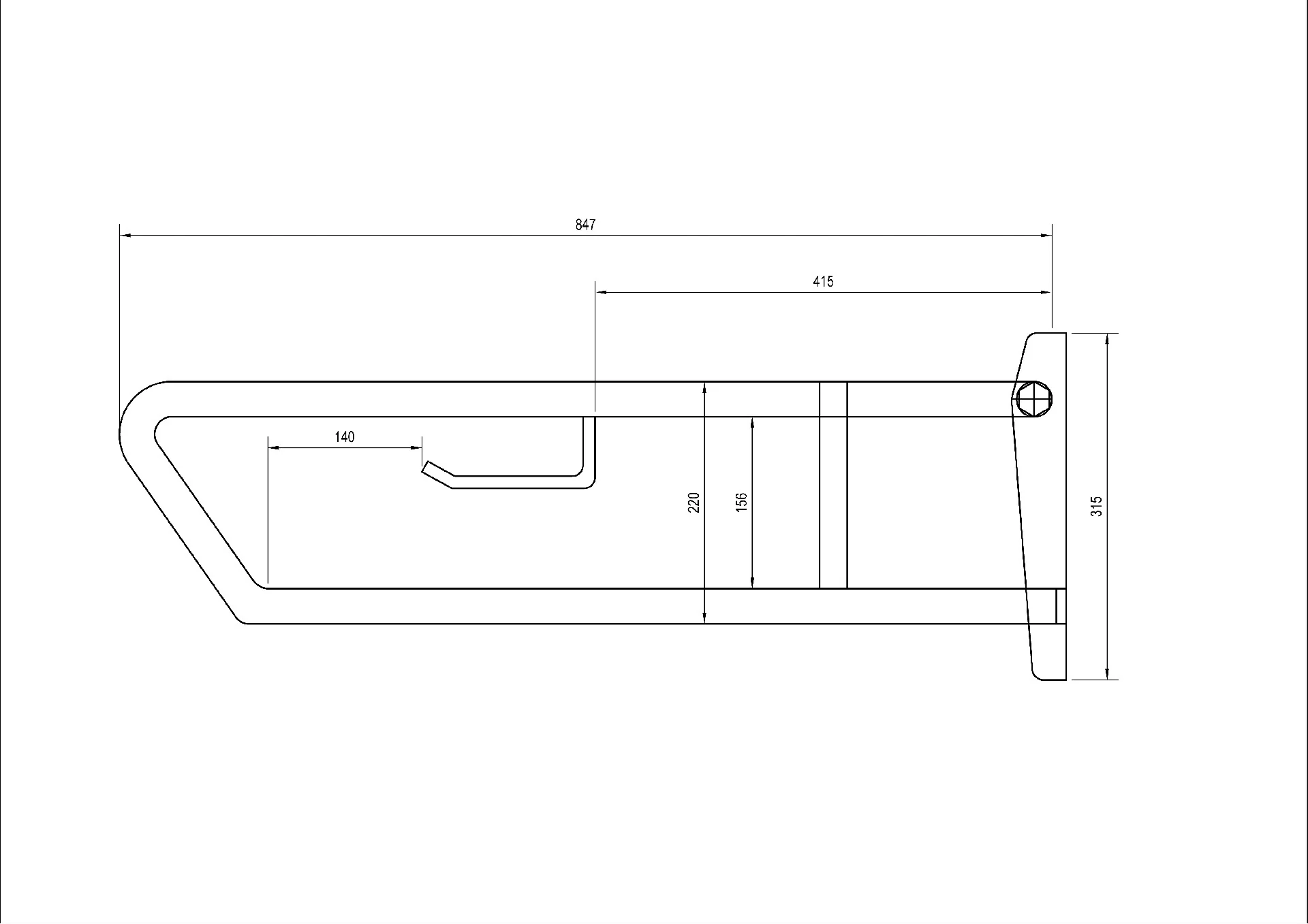

| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail | 215mmH from outer edge to edge |
| Toilet Roll Holder | 168mmL with top of Holder 50mm below underside of upper rail |
| Mounting Bracket | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Consumable Advice | Standard Toilet Roll, can hold up to 230 sheets per roll |
| Note |
*Unit stores in upright position *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Original: $155.84
-65%$155.84
$54.54More Images
Pull Down Grab Rail with Toilet Roll Holder
Specification
| Material | #304 Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace |
2.5mm Formed #304 Stainless Steel |
| Toilet Roll Holder | 12.5mmØ Stainless Steel Bar |
| Finish | Satin Stainless Steel |
| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail | 215mmH from outer edge to edge |
| Toilet Roll Holder | 168mmL with top of Holder 50mm below underside of upper rail |
| Mounting Bracket | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Consumable Advice | Standard Toilet Roll, can hold up to 230 sheets per roll |
| Note |
*Unit stores in upright position *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification
| Material | #304 Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel - 32mmØ |
|
Mounting Bracket & Brace |
2.5mm Formed #304 Stainless Steel |
| Toilet Roll Holder | 12.5mmØ Stainless Steel Bar |
| Finish | Satin Stainless Steel |
| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail | 215mmH from outer edge to edge |
| Toilet Roll Holder | 168mmL with top of Holder 50mm below underside of upper rail |
| Mounting Bracket | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Consumable Advice | Standard Toilet Roll, can hold up to 230 sheets per roll |
| Note |
*Unit stores in upright position *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
