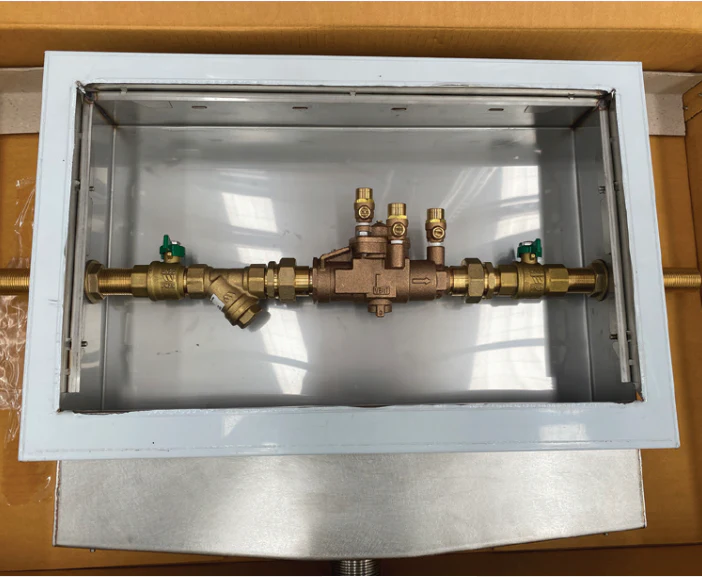

RPZ Single Valve with Stainless Steel Recessed Cabinet - SCABR

Protect and conceal your backflow prevention devices with the Watts SCABR Recessed Cabinet. Designed for a professional, flush-mount finish, this cabinet is the industry standard for housing Single Check, Double Check, and Reduced Pressure Zone (RPZ) valves in commercial and high-end residential projects.

Fabricated from premium 304-grade stainless steel, the SCABR provides a secure, lockable, and corrosion-resistant enclosure that meets Australian plumbing standards for backflow device accessibility and drainage.

Key Features

• High-Quality Construction: Manufactured from durable #304 stainless steel with a brushed finish for a clean, professional look.

• Optimal Ventilation: Integrated vent slots at the top of the cabinet prevent condensation and ensure airflow around the device.

• Secure Access: Features a lockable front access panel to prevent tampering while allowing for easy annual testing and maintenance.

• Built-in Drainage: Equipped with a standard 40mm waste connection to manage relief valve discharge safely.

• Flexible Installation: Includes adjustable mounting brackets for precise fitting into wall cavities.

Size Compatibility

This cabinet is engineered to accommodate various valve configurations:

• Standard SCABR: Suits 1 x 15mm, 20mm, or 25mm Double Check Valves or RPZ Devices.

• Large Format (32mm–40mm): Specifically sized to provide the necessary clearance and drainage for larger 32mm and 40mm backflow prevention assemblies.

Technical Specifications

• Material: 304 Grade Stainless Steel

• Mounting: Recessed / In-Wall

• Waste Outlet: 40mm Standard

• Lock Type: Lockable front panel for site security

• Brand: Watts Australia

Typical Applications

Ideal for corridors, public walkways, and external walls where backflow devices must be protected from damage or vandalism without creating an obstruction.

• Commercial Kitchens & Schools

• Hospitals & Medical Centers

• Shopping Centres & Office Towers
