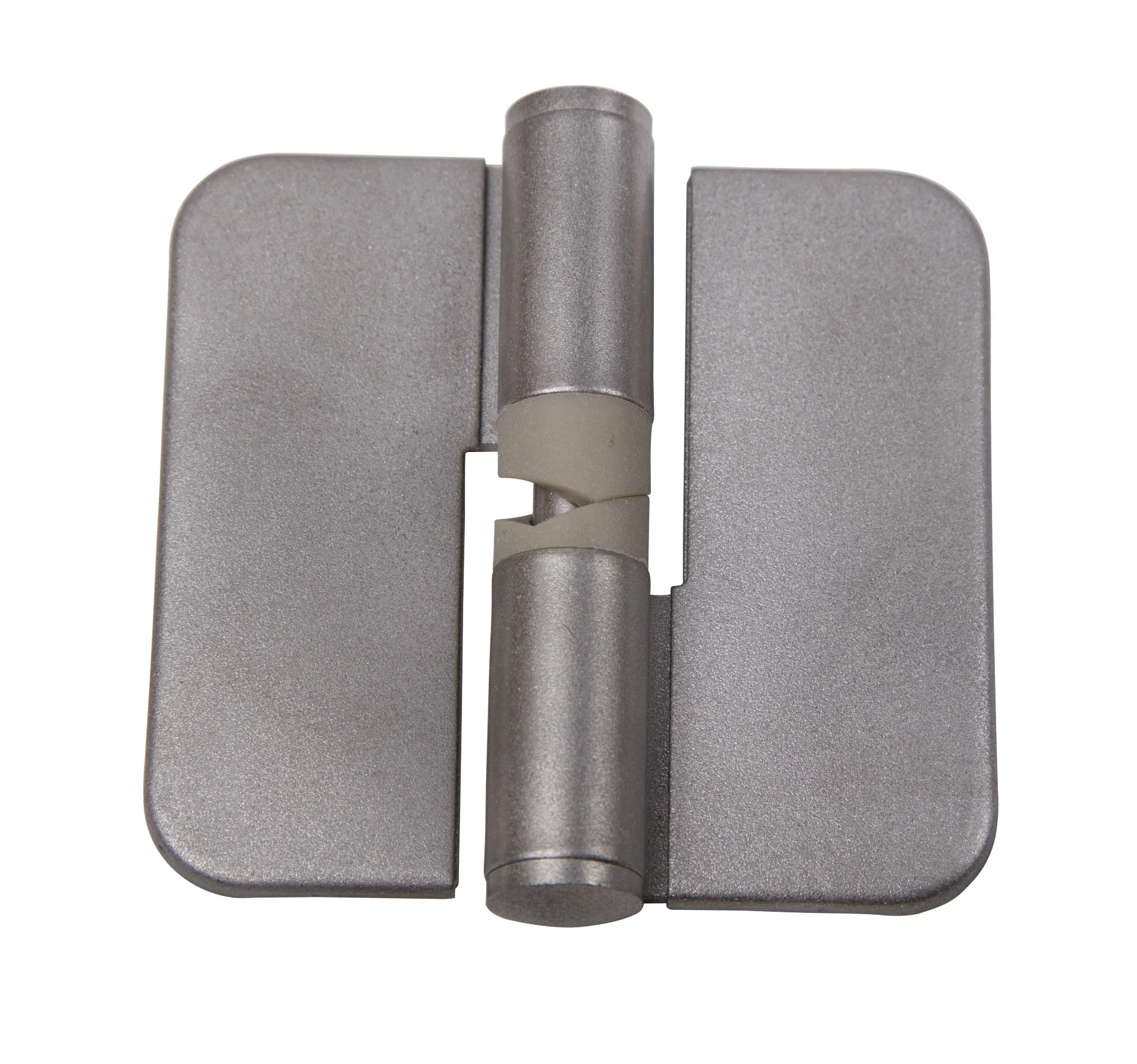

Name: Sentinel Gravity Hinge Concealed Fix
Brand: Plumbing Supplies
SKU: sentinel-gravity-hinge-concealed-fix
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Sentinel Gravity Hinge Concealed Fix

Material	#304 Stainless Steel Nylon Inserts Stainless Steel Snap-on Covers
Finish	Authentic Industrial Stainless Steel
Mounting	Screw Fix
Minimum Hinge Clearance For Lift Off Hinges	35mm
Specify	SENTINEL_LHHC_SS: Left Hand, Hold Closed. Assists door to move towards Hold Closed position SENTINEL_LHHO_SS: Left Hand, Hold Open. Assists door to move towards Hold Open position SENTINEL_RHHC_SS: Right Hand, Hold Closed. Assists door to move towards Hold Closed position SENTINEL_RHHO_SS: Right Hand, Hold Open. Assists door to move towards Hold Open position
Features	Gravity assisted door opening/door closing with lift off capability.
Load Rating	15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing
	For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge
Note	All hinges are available with or without fixings. Please nominate your requirements at the time of ordering.
Disclaimer	Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below.
