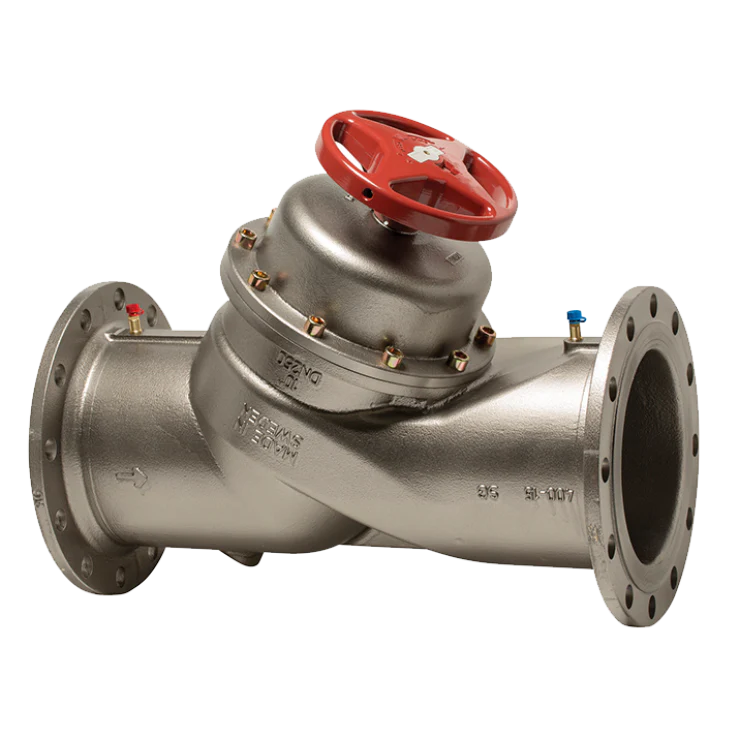

TA Balancing Valve STAF SG Flanged PN16

TA Balancing Valve STAF SG Flanged PN16

Flanged, ductile iron balancing, Pre-setting, measuring, shut-off valve PN16.

Pressure class:
  • PN 16
Temperature:
  • Max. working temperature:120°C
  • For higher temperatures (max. 150°C), please contact the nearest sales office.
  • Min. working temperature: STAF-SG: -20°C


Applications:

  • Heating and cooling systems.
  • Functions:
  • Balancing
  • Pre-setting
  • Measuring
  • Shut-off (The balancing cone for valve DN 65-400 is pressure released).

Dimensions:

STAF-SG: DN 20-400

Media:
Water or neutral fluids, water-glycol mixtures (0-57%).

Material:
Body, STAF-SG: Ductile iron EN-GJS-400-15.

Specifications
  • Max. working temperature:120°CFor higher temperatures (max. 150°C), please contact the nearest sales office.Min. working temperature: STAF-SG: -20°C
Downloads

TA Balancing Valve STAF SG 1.01 mb

Select Option
From $1,212.64

Original: $3,464.69

-65%
TA Balancing Valve STAF SG Flanged PN16—

$3,464.69

$1,212.64

TA Balancing Valve STAF SG Flanged PN16

Flanged, ductile iron balancing, Pre-setting, measuring, shut-off valve PN16.

Pressure class:
  • PN 16
Temperature:
  • Max. working temperature:120°C
  • For higher temperatures (max. 150°C), please contact the nearest sales office.
  • Min. working temperature: STAF-SG: -20°C


Applications:

  • Heating and cooling systems.
  • Functions:
  • Balancing
  • Pre-setting
  • Measuring
  • Shut-off (The balancing cone for valve DN 65-400 is pressure released).

Dimensions:

STAF-SG: DN 20-400

Media:
Water or neutral fluids, water-glycol mixtures (0-57%).

Material:
Body, STAF-SG: Ductile iron EN-GJS-400-15.

Specifications
  • Max. working temperature:120°CFor higher temperatures (max. 150°C), please contact the nearest sales office.Min. working temperature: STAF-SG: -20°C
Downloads

TA Balancing Valve STAF SG 1.01 mb
