TA Scope Premium HP

Balancing instrument for measuring and documenting differential pressure (Δp), flow, temperature and power in hydronic systems.

Measurement range:

• Total pressure:
• TA-SCOPE max. 1 600 kPa
• TA-SCOPE HP max. 2 500 kPa
• Differential pressure:
• TA-SCOPE 0 - 500 kPa
• TA-SCOPE HP 0 - 1 000 kPa
• Recommended pressure range during flow measurements:
• TA-SCOPE 1 - 500 kPa
• TA-SCOPE HP 3 - 1 000 kPa

Temperature liquid medium measurement:

• -20°C – +120°C

Measurement deviation:
Differential pressure:

• TA-SCOPE 0.1 kPa or 1% of reading, whichever is the highest
• TA-SCOPE HP 0.2 kPa or 1% of reading, whichever is the highest
• Flow: as for differential pressure + valve deviation
• Temperature: <0.2°C

Functions:

TA-SCOPE is a balancing instrument for measuring and documenting of differential pressure (Δp), flow, temperature and power in hydronic systems.

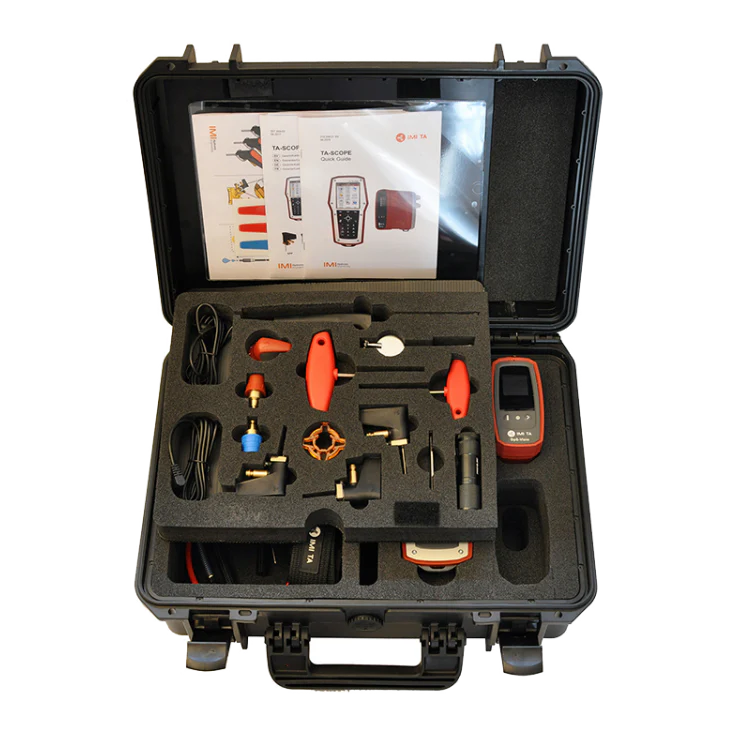

TA-SCOPE consists of two main components:
Handheld unit – computer-based unit programmed with the TA valve characteristics. Straightforward functions with easy-to-follow instructions on the colour display.
Differential Pressure Sensor unit – the DpS-Visio communicates wirelessly with the Handheld and has an OLED display for showing its status, measured data and other information.

TA-SCOPE automatically performs calibration when needed. The design of the sensor unit and a short flow-through during calibration eliminate measurement errors caused by insufficient venting of the measuring device.
