Touch-Activated Dual Flush WC Flushing System – Front Access
HomeStore

Touch-Activated Dual Flush WC Flushing System – Front Access

Touch-Activated Dual Flush WC Flushing System – Front Access

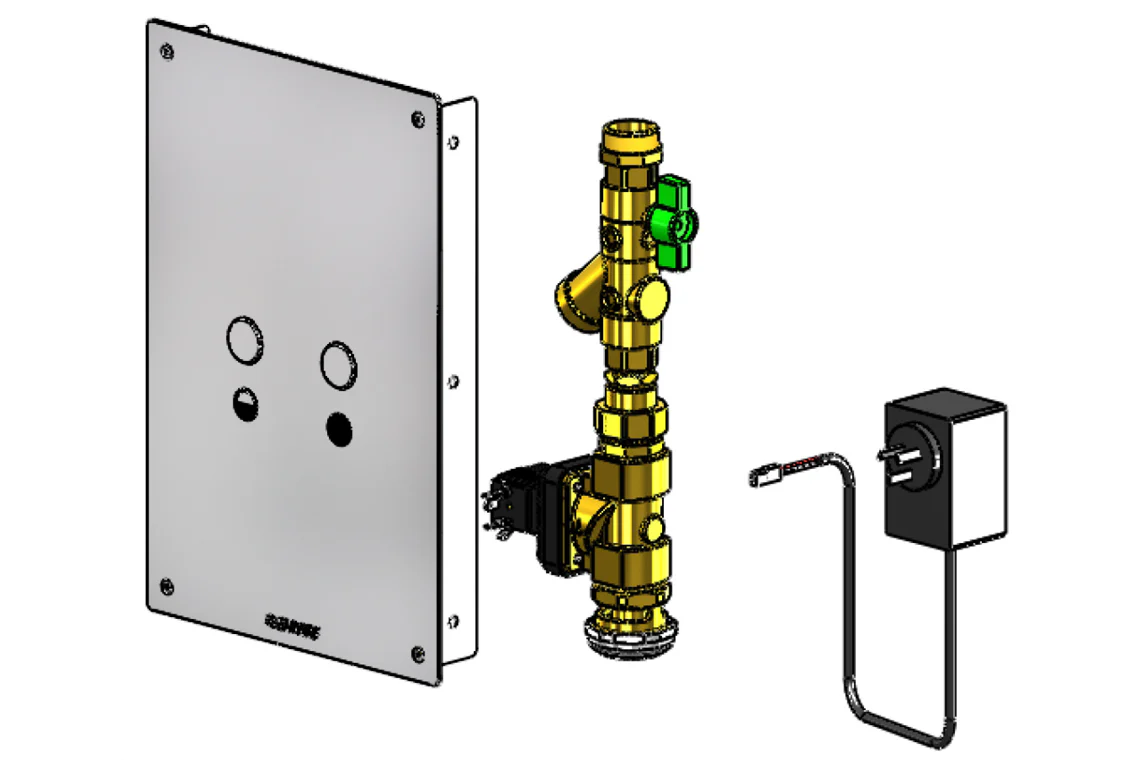

Enware’s WC flushing systems provide a neat and reliable flushing solution using piezo technology, particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers either a 3/6L or 3/4.5L flush.
Larger style face plate allows for front access where remote access is not available.
Designed to allow for full access to flushing components located behind the stainless panel. Stainless steel panel is secured with torx screws. Shut off valve, filter and airbreak included. Suitable for AS1428.1 applications.

  • Piezo touch button control
  • Mains power 24V
  • Large face plate
  • Vandal resistant torx screws
  • WMTS-020 Compliant
  • 3-year warranty
  • WaterMark: AS/NZS 3662 C of C 40051 Global-Mark
  • WELS Options include: 3 and 4 Star Rating

INLET & OUTLET

Connection Inlet - 1" BSP (25mm)

PRESSURE

Dual Flush Water Supply Working Pressure 300kPa
Single Flush Water Supply Working Pressure 250kPI

FLUSH

Flush Pipe 700mm (+/- 100mm) of 1 1/2" (40mm) flush pipe is required below the air break.

FLOW RATE

Kv Factor 8.3m3/h

POWER SOURCE

Mains Powered 24V AC Transformer

SUPPLY LINE

Minimum Water Supply Line Size 1" (25mm) copper pipe
$1,078.71
Touch-Activated Dual Flush WC Flushing System – Front Access—
$1,078.71

More Images

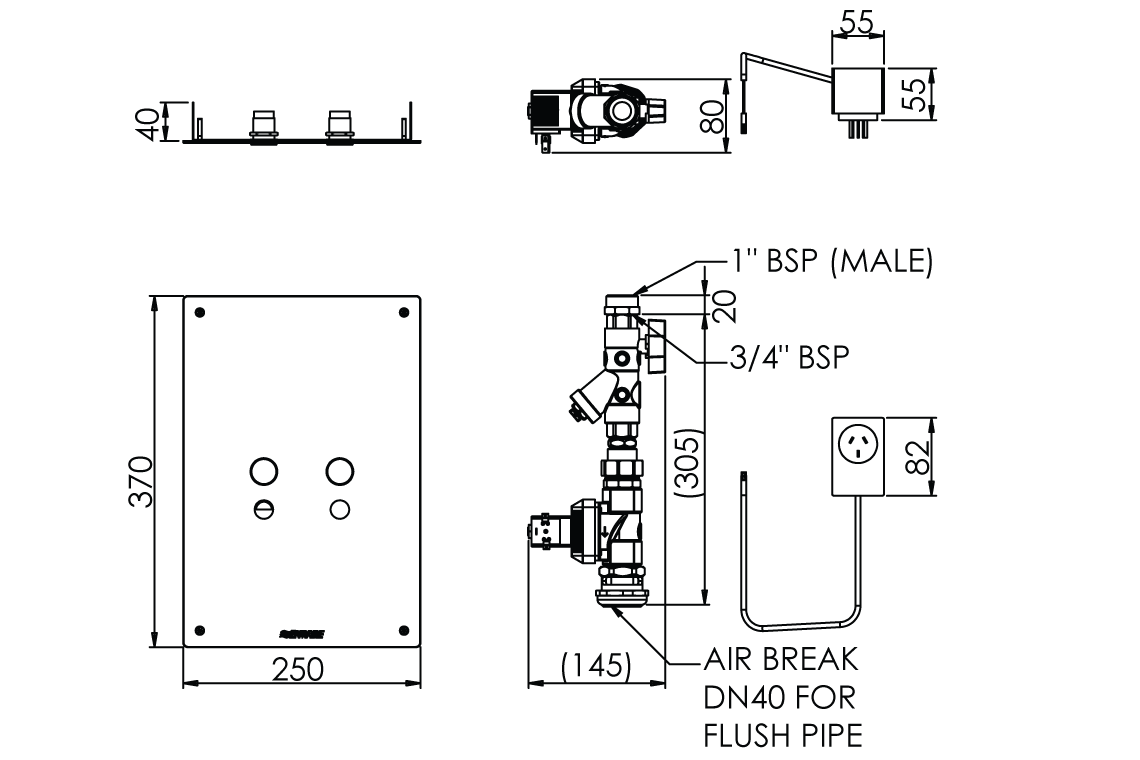

Touch-Activated Dual Flush WC Flushing System – Front Access - Image 2

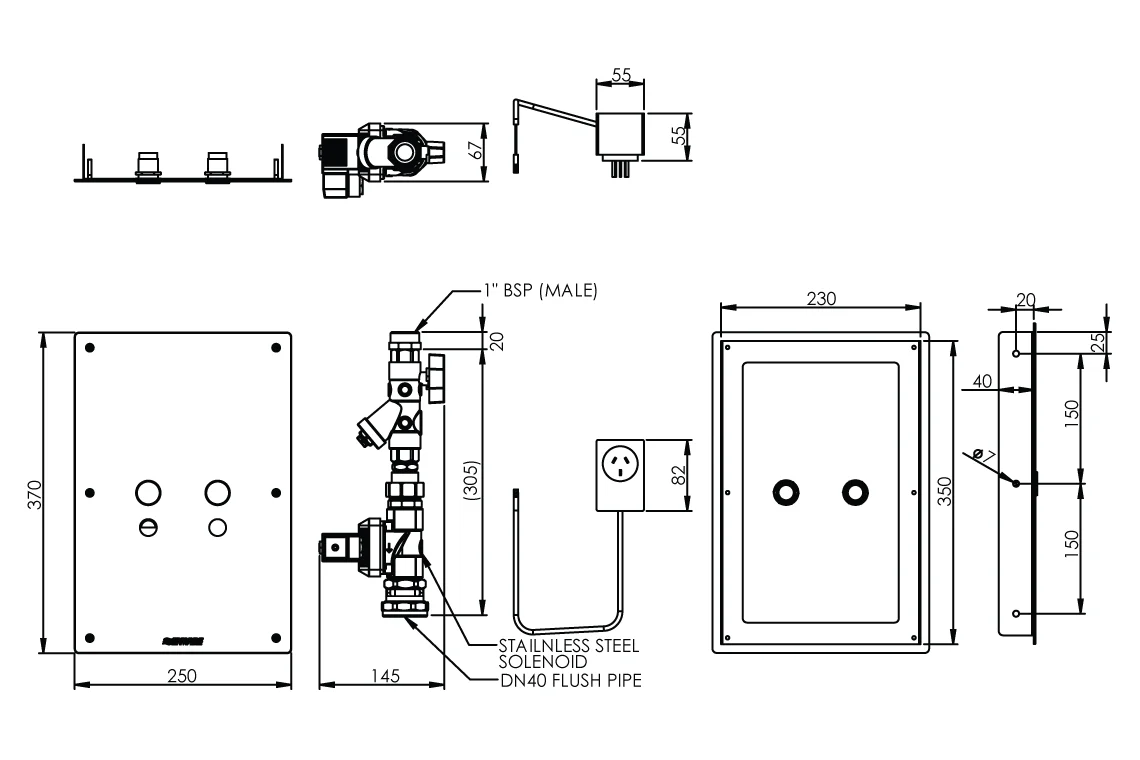

Touch-Activated Dual Flush WC Flushing System – Front Access - Image 3
