Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access

Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access

Enware’s WC flushing systems provide a neat and reliable flushing solution using piezoelectric technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers either a 3/6L or 3/4.5L flush.
Best suited for duct style installation (Flush unit and activation plate MUST be separated).
Semi concealed installation with a stainless steel panel and security screws. Shut off valve, filter and airbreak included. Suitable for AS1428.1 applications.

  • Piezo touch button control
  • Mains power 24V
  • Compact face plate
  • Vandal resistant torx screws
  • WMTS-020 compliant
  • 3-year warranty
  • WaterMark: AS/NZS 3662 C of C 40051 Global-Mark
  • WELS Options include: 3 and 4 Star Rating

INLET & OUTLET

Connection Inlet - 1" BSP (25mm)

PRESSURE

Dual Flush Water Supply Working Pressure 300kPa
Single Flush Water Supply Working Pressure 250kPI

FLUSH

Flush Pipe 700mm (+/- 100mm) of 1 1/2" (40mm) flush pipe is required below the air break.

FLOW RATE

Kv Factor 8.3m3/h

POWER SOURCE

Mains Powered 24V AC Transformer

SUPPLY LINE

Minimum Water Supply Line Size 1" (25mm) copper pipe



$1,028.30
Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access—
$1,028.30

More Images

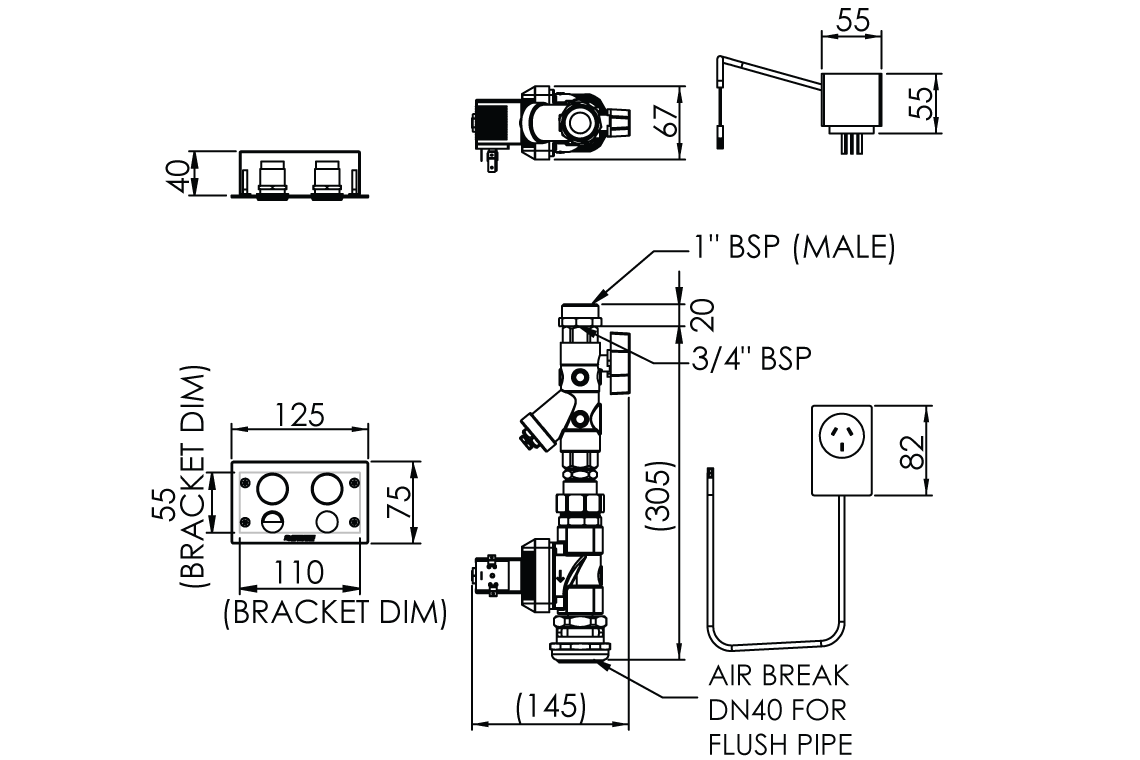

Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access - Image 2

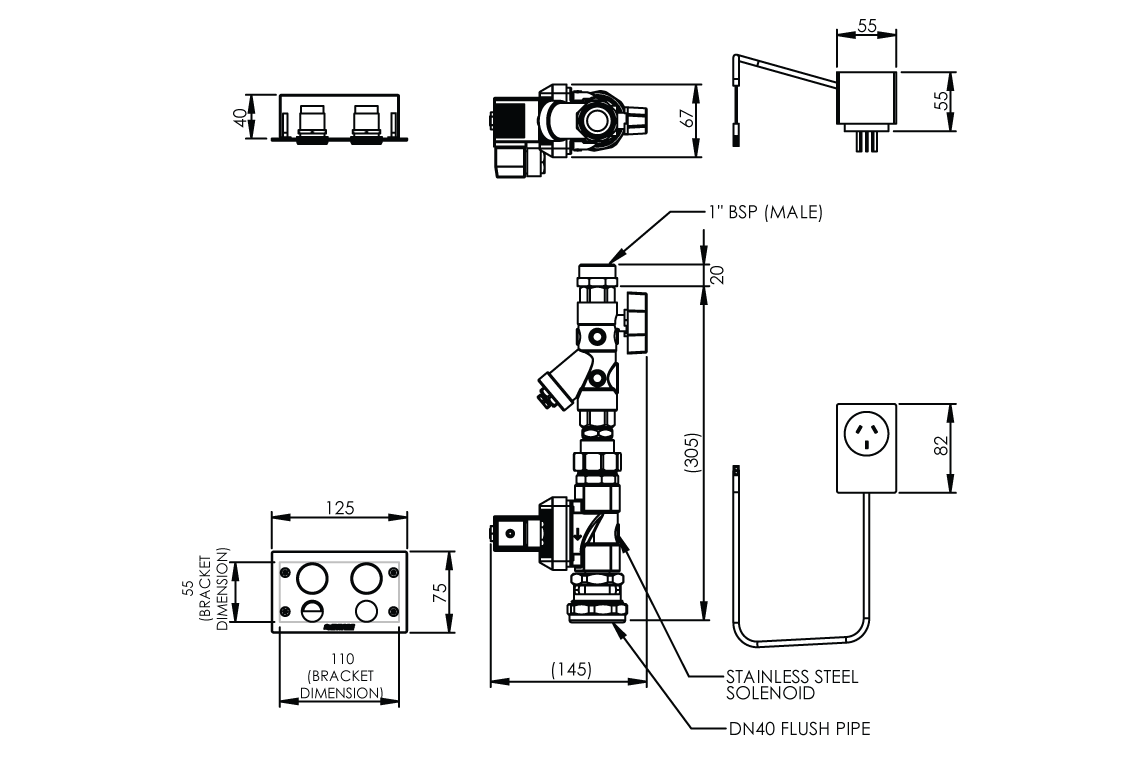

Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access - Image 3

Touch-Activated Dual Flush WC Standard – Flushing System – Duct Access

Enware’s WC flushing systems provide a neat and reliable flushing solution using piezoelectric technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers either a 3/6L or 3/4.5L flush.
Best suited for duct style installation (Flush unit and activation plate MUST be separated).
Semi concealed installation with a stainless steel panel and security screws. Shut off valve, filter and airbreak included. Suitable for AS1428.1 applications.

  • Piezo touch button control
  • Mains power 24V
  • Compact face plate
  • Vandal resistant torx screws
  • WMTS-020 compliant
  • 3-year warranty
  • WaterMark: AS/NZS 3662 C of C 40051 Global-Mark
  • WELS Options include: 3 and 4 Star Rating

INLET & OUTLET

Connection Inlet - 1" BSP (25mm)

PRESSURE

Dual Flush Water Supply Working Pressure 300kPa
Single Flush Water Supply Working Pressure 250kPI

FLUSH

Flush Pipe 700mm (+/- 100mm) of 1 1/2" (40mm) flush pipe is required below the air break.

FLOW RATE

Kv Factor 8.3m3/h

POWER SOURCE

Mains Powered 24V AC Transformer

SUPPLY LINE

Minimum Water Supply Line Size 1" (25mm) copper pipe
