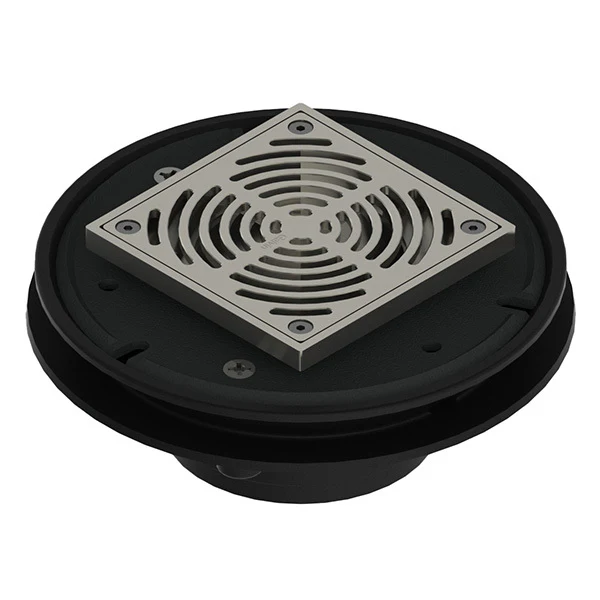

Vertical Drain Combo - DI 100PVC with SS Square Grate 150
Cast stainless steel square floor drain assembly, threaded BSP, with stainless steel lock down allen key screws, load rated to Class C, with black enamel coated ductile iron multi-purpose vertical built-in puddle flange body, with dual purpose reversible membrane clamping collar and weep holes.
Features
- Complies with AS/NZS 4994:1998
- Discharge of commercial and industrial waste water
- Complies with AS 3996 to Class C and EN1253
- Class C rating
- Ideal for podium areas, balconies, foot paths, car parks, around swimming pools and general commercial applications where a water proof membrane is used
- Ductile iron body with unique built in puddle flange
Flow Rate Guide (litre/min)
| Pressure Head mm of Water | ||||
| 10mm | 20mm | 30mm | 40mm | 50mm |
| 60 | 145 | 214 | 265 | 287 |

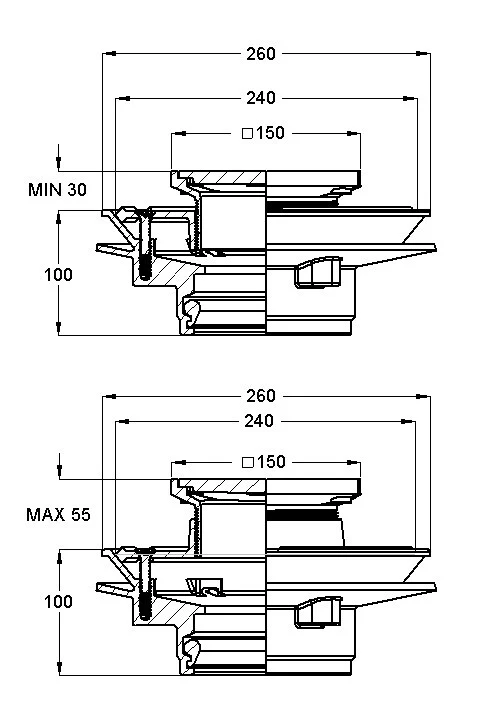

More Images
