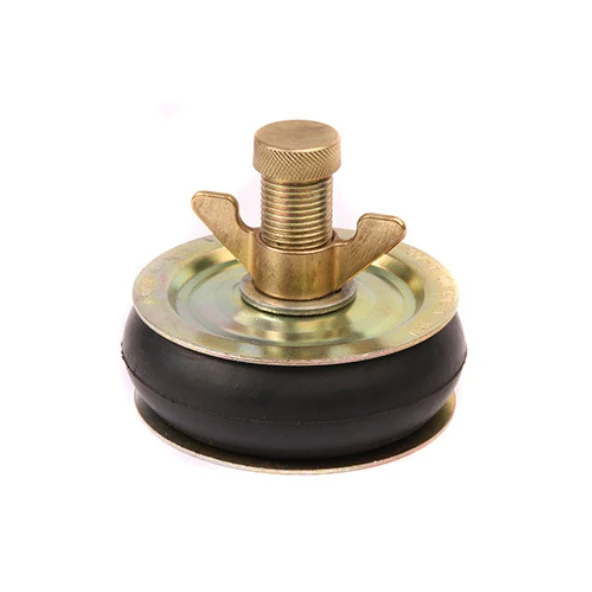

Bromic Test Plug 100 Mm 4″ Diameter
Bromic Test Plugs are designed for testing leaks and to seal off sections of pipelines. The Test Plugs are developed with a vent tube for venting excess back-pressure, suitable to test pressure in sewage, waste and stormwater pipes. Before selecting a test plug the maximum allowed back pressure should be pre-determined.
Features
100mm test plug compatible with 110mm (external size) pipe
Thrust washers fitted as standard on all sizes
Zinc plated – corrosion resistant to 90 hours (salt spray test)
Suitable for testing sewage, waste and storm water pipes
One person, easy installation
Specifications
| Product Number | 8688004 |
| Barcode/GTIN | 9320688215802 |
| Minimum Depth (inserted in pipe) | 37.5mm |
| Plug Length | 83.3mm |
| Waterway Diameter | 15mm |
| Max. Back Pressure (psi) | 10psi |
| Weight (kg) | 0.38kg |
| Brands | Bromic |
| Internal Pipe Size (Diameter Imperial) | 4" |
| Internal Pipe Size (Nominal Metric) | 100mm |
| Compatible Pipe Size () | 110mm, 94mm |
