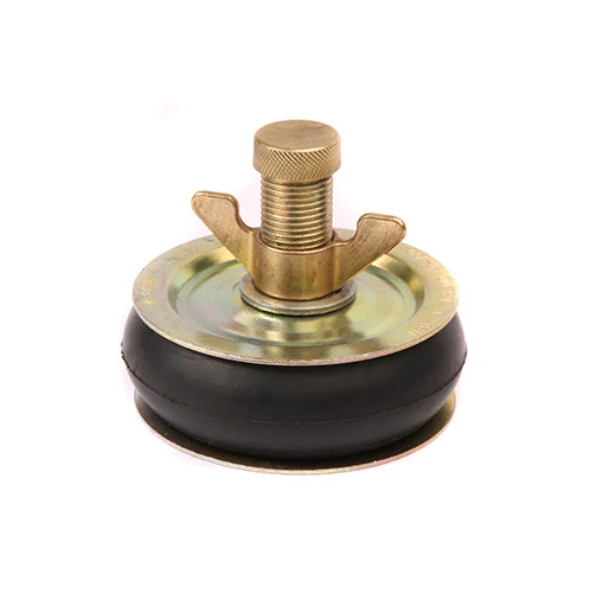

Bromic Test Plug 40 Mm 1.5″ Diameter
Bromic Test Plugs are designed for testing leaks and to seal off sections of pipelines. The Test Plugs are developed with a vent tube for venting excess back-pressure, suitable to test pressure in sewage, waste and stormwater pipes. Before selecting a test plug the maximum allowed back pressure should be pre-determined.
Features
40mm test plug compatible with 53mm (external size) pipe
Thrust washers fitted as standard on all sizes
Zinc plated – corrosion resistant to 90 hours (salt spray test)
Suitable for testing sewage, waste and storm water pipes
One person, easy installation
Specifications
| Product Number | 8688000 |
| Barcode/GTIN | 9320688215789 |
| Minimum Depth (inserted in pipe) | 31mm |
| Plug Length | 81.5mm |
| Waterway Diameter | 15mm |
| Max. Back Pressure (psi) | 30 |
| Weight (kg) | 0.11 |
| Brands | Bromic |
| Internal Pipe Size (Diameter Imperial) | 1.5" |
| Internal Pipe Size (Nominal Metric) | 40mm |
| Compatible Pipe Size () | 80mm, 62mm, 38mm, 53mm |
Original: $15.94
-65%$15.94
$5.58Bromic Test Plug 40 Mm 1.5″ Diameter
Bromic Test Plugs are designed for testing leaks and to seal off sections of pipelines. The Test Plugs are developed with a vent tube for venting excess back-pressure, suitable to test pressure in sewage, waste and stormwater pipes. Before selecting a test plug the maximum allowed back pressure should be pre-determined.
Features
40mm test plug compatible with 53mm (external size) pipe
Thrust washers fitted as standard on all sizes
Zinc plated – corrosion resistant to 90 hours (salt spray test)
Suitable for testing sewage, waste and storm water pipes
One person, easy installation
Specifications
| Product Number | 8688000 |
| Barcode/GTIN | 9320688215789 |
| Minimum Depth (inserted in pipe) | 31mm |
| Plug Length | 81.5mm |
| Waterway Diameter | 15mm |
| Max. Back Pressure (psi) | 30 |
| Weight (kg) | 0.11 |
| Brands | Bromic |
| Internal Pipe Size (Diameter Imperial) | 1.5" |
| Internal Pipe Size (Nominal Metric) | 40mm |
| Compatible Pipe Size () | 80mm, 62mm, 38mm, 53mm |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Bromic Test Plugs are designed for testing leaks and to seal off sections of pipelines. The Test Plugs are developed with a vent tube for venting excess back-pressure, suitable to test pressure in sewage, waste and stormwater pipes. Before selecting a test plug the maximum allowed back pressure should be pre-determined.
Features
40mm test plug compatible with 53mm (external size) pipe
Thrust washers fitted as standard on all sizes
Zinc plated – corrosion resistant to 90 hours (salt spray test)
Suitable for testing sewage, waste and storm water pipes
One person, easy installation
Specifications
| Product Number | 8688000 |
| Barcode/GTIN | 9320688215789 |
| Minimum Depth (inserted in pipe) | 31mm |
| Plug Length | 81.5mm |
| Waterway Diameter | 15mm |
| Max. Back Pressure (psi) | 30 |
| Weight (kg) | 0.11 |
| Brands | Bromic |
| Internal Pipe Size (Diameter Imperial) | 1.5" |
| Internal Pipe Size (Nominal Metric) | 40mm |
| Compatible Pipe Size () | 80mm, 62mm, 38mm, 53mm |
